Untamed Atlas

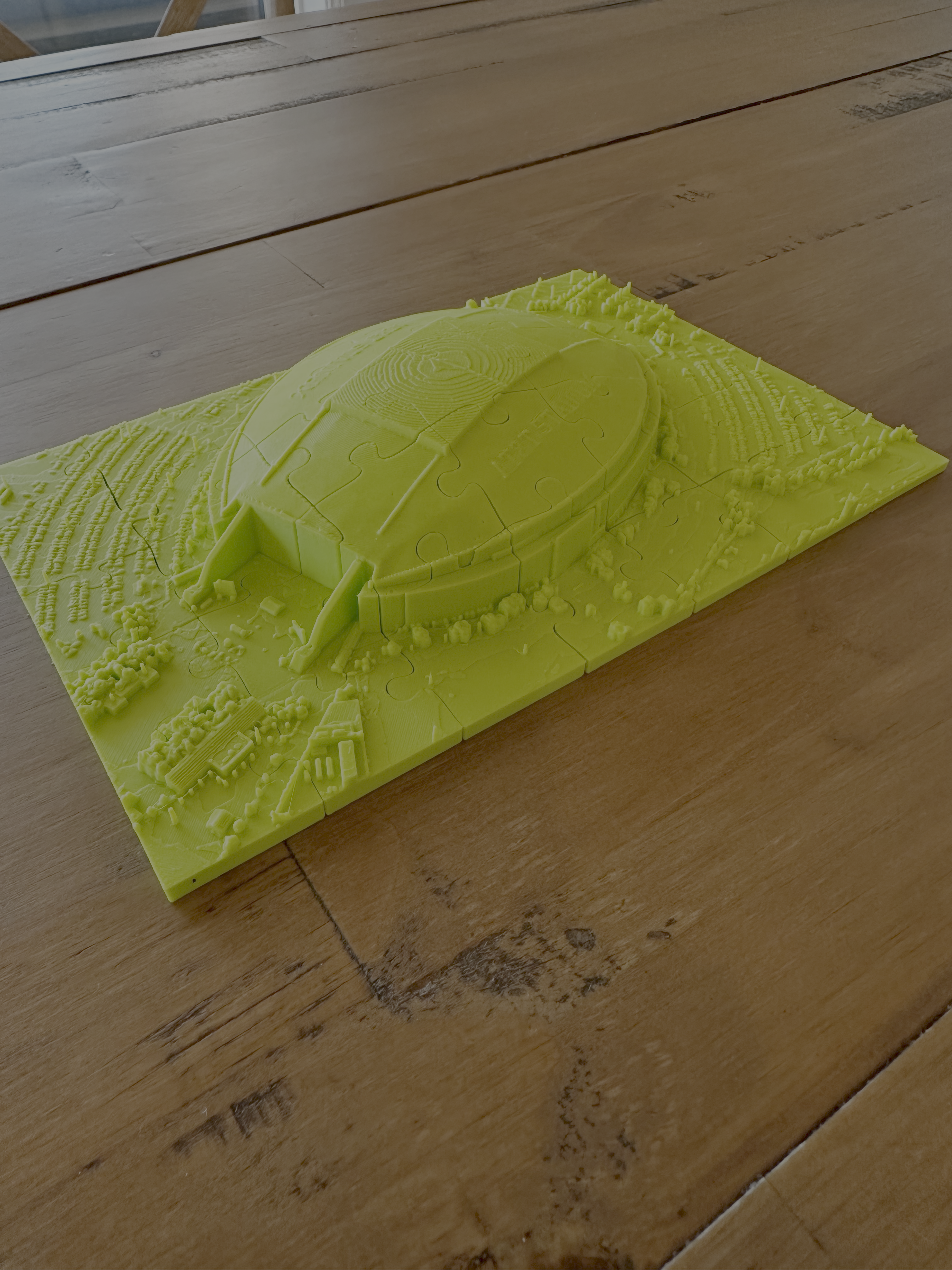

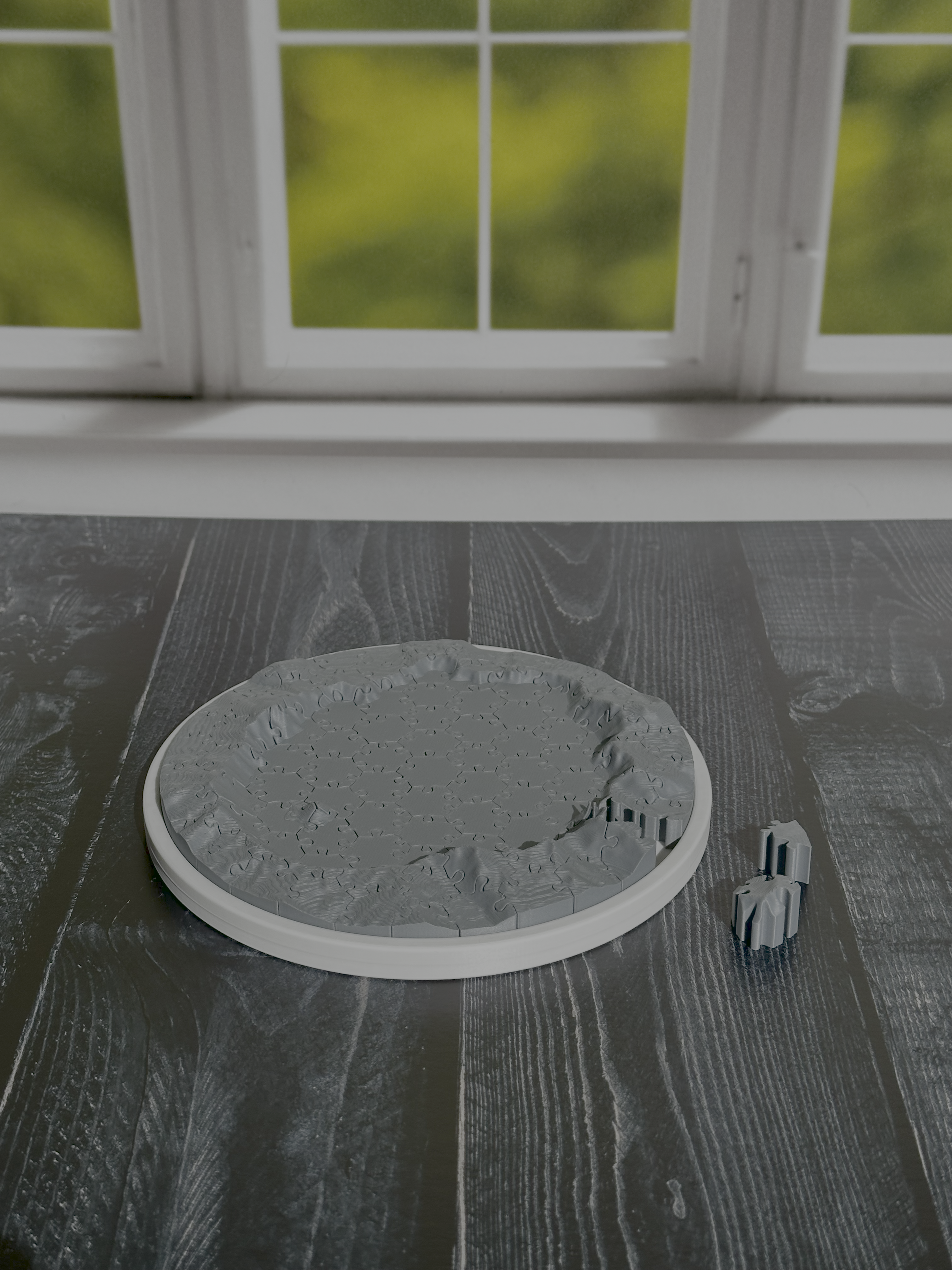

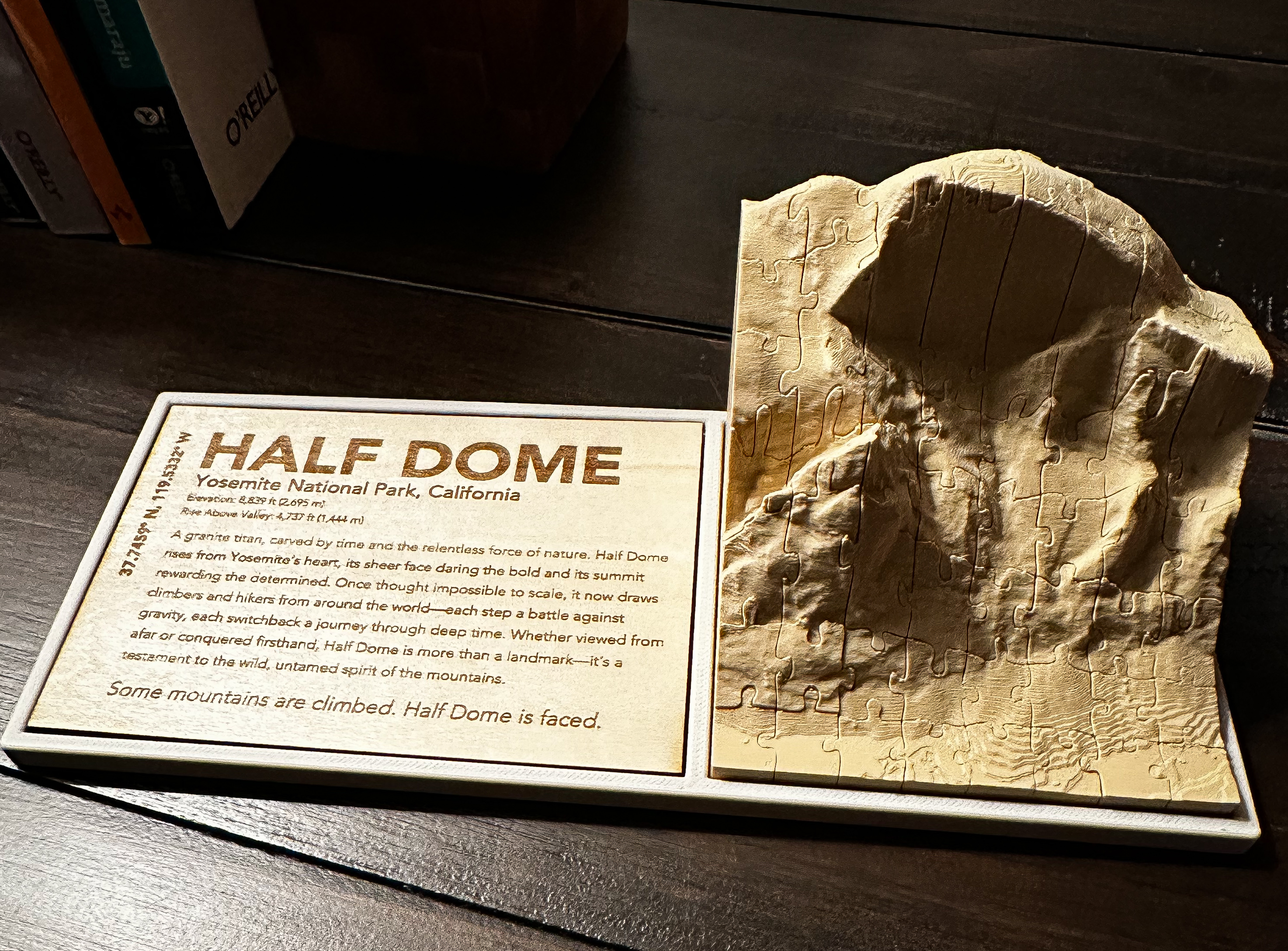

Untamed Atlas is a project for 3D printing landscape jigsaw puzzles based on real-world GIS terrain data. Each puzzle piece contains actual topography from the selected region.

Workflow

1. Generate puzzle pieces - Create jigsaw SVG patterns using a puzzle generator
2. Prep in Fusion 360 - Import, scale, and outline the SVG pieces for extrusion
3. Import terrain in Blender - Load GIS .tif elevation data and convert to 3D mesh
4. Boolean intersection - Cut each puzzle piece shape from the terrain mesh
5. Print - Export STLs and slice in Bambu Studio

Tools

• Jigsaw Generator for puzzle patterns
• Fusion 360 for SVG prep
• Blender with GIS addon for terrain processing
• Bambu Studio for slicing
